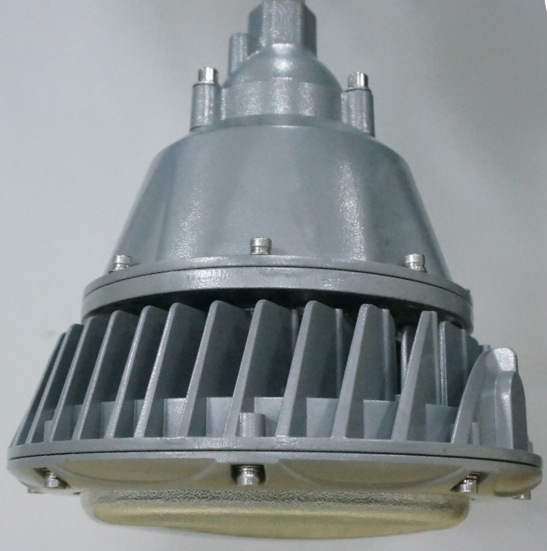

江苏新黎明 BZD285B-DC系列LED防爆灯
BZD285B-DC Series LED explosion-proof lamp

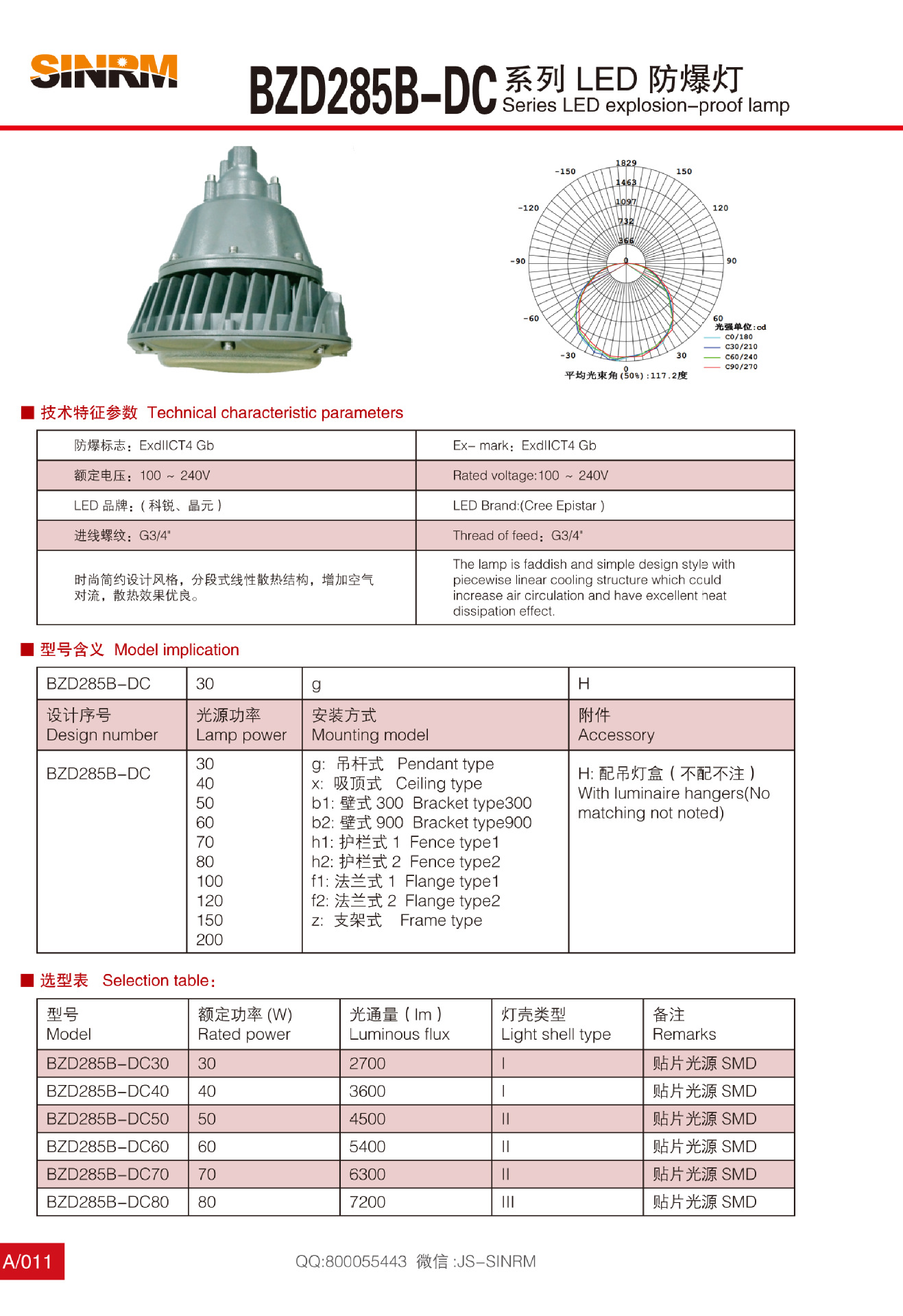

技术特征参数Technical characteristic parameters
|
防爆标志：ExdIICT4 Gb
|
Ex- mark：ExdIICT4 Gb
|
|
额定电压：100～240V
|
Rated voltage:100～240V
|
|
LED品牌：(科锐、晶元）
|
LED Brand:(Cree Epistar )
|
|
进线螺纹：G3/4"
|
Thread of feed：G3/4"
|
|
时尚简约设计风格，分段式线性散热结构，增加空气对流，散热效果优良。
|
The lamp is faddish and simple design style with piecewise linear cooling structure which could increase air circulation and have excellent heat dissipation effect.
|
型号含义Model implication
|
No.1
|
2
|
3
|
4
|
|
BZD285B-DC
|
30
|
g
|
H
|
|
设计序号
Design number
|
光源功率
Lamp power
|
安装方式
Mounting model
|
附件
Accessory
|
|
BZD285B-DC
|
30
40
50
60
70
80
100
120
150
200
|
g: 吊杆式 Pendant type
x: 吸顶式 Ceiling type
b1:壁式300 Bracket type300
b2:壁式900 Bracket type900
h1:护栏式1 Fence type1
h2:护栏式2 Fence type2
f1:法兰式1 Flange type1
f2:法兰式2 Flange type2
z: 支架式 fra-me type
|
H:配吊灯盒（不配不注）
With luminaire hangers(No matching not noted)
|
选型表Selection table：
|
型号
Model
|
额定功率(W)
Rated power
|
光通量（lm）
Luminous flux
|
灯壳类型
Light shell type
|
备注
Remarks
|
|
BZD285B-DC30
|
30
|
2700
|
I
|
贴片光源SMD
|
|
BZD285B-DC40
|
40
|
3600
|
I
|
贴片光源SMD
|
|
BZD285B-DC50
|
50
|
4500
|
II
|
贴片光源SMD
|
|
BZD285B-DC60
|
60
|
5400
|
II
|
贴片光源SMD
|
|
BZD285B-DC70
|
70
|
6300
|
II
|
贴片光源SMD
|
|
BZD285B-DC80
|
80
|
7200
|
III
|
贴片光源SMD
|
|
BZD285B-DC100
|
100
|
9000
|
III
|
贴片光源SMD
|
|
BZD285B-DC120
|
120
|
10800
|
III
|
贴片光源SMD
|
|
BZD285B-DC150
|
150
|
13500
|
IV
|
贴片光源SMD
|
|
BZD285B-DC200
|
200
|
18000
|
IV
|
贴片光源SMD
|

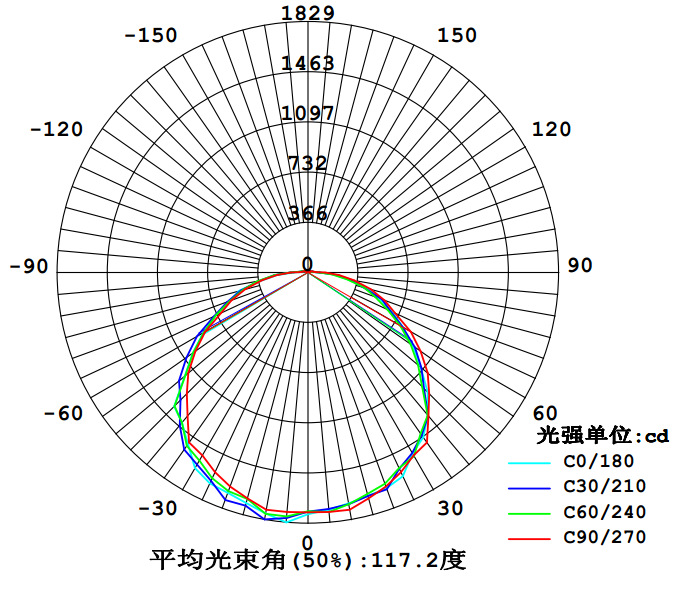

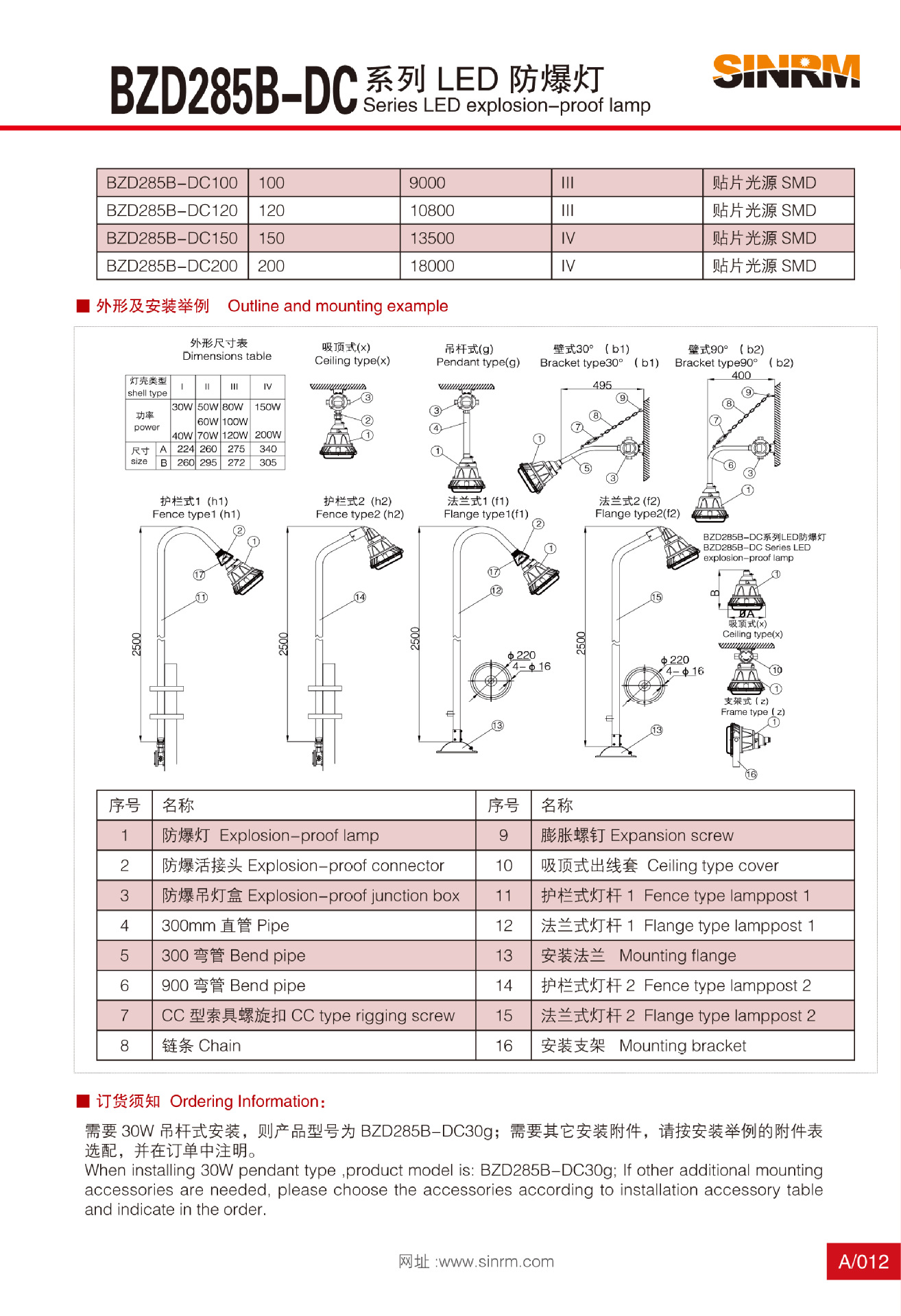

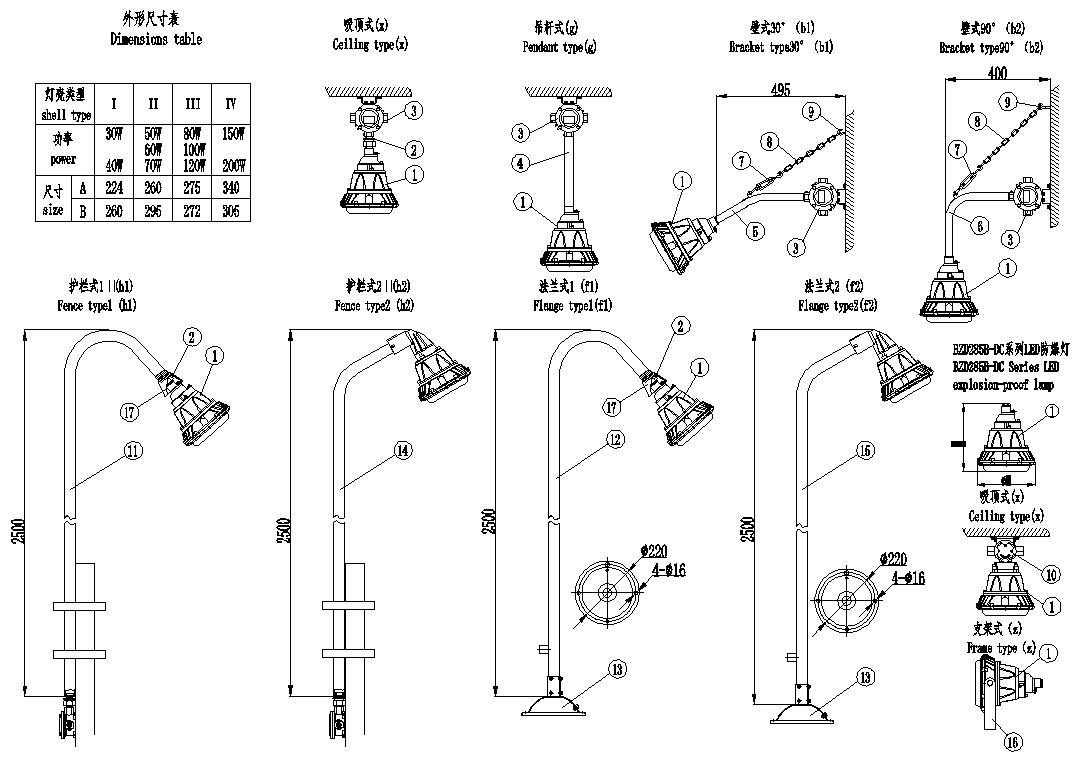

外形及安装举例Outline and mounting example
|
序号
|
名称
|
序号
|
名称
|
|
①
|
防爆灯 Explosion-proof lamp
|
⑨
|
膨胀螺钉Expansion screw
|
|
②
|
防爆活接头Explosion-proof connector
|
⑩
|
吸顶式出线套 Ceiling type cover
|
|
③
|
防爆吊灯盒Explosion-proof junction box
|
??
|
护栏式灯杆1 Fence type lamppost 1
|
|
④
|
300mm直管Pipe
|
??
|
法兰式灯杆1 Flange type lamppost 1
|
|
⑤
|
300弯管Bend pipe
|
??
|
安装法兰 Mounting flange
|
|
⑥
|
900弯管Bend pipe
|
??
|
护栏式灯杆2 Fence type lamppost 2
|
|
⑦
|
CC型索具螺旋扣CC type rigging screw
|
??
|
法兰式灯杆2 Flange type lamppost 2
|
|
⑧
|
链条Chain
|
??
|
安装支架 Mounting bracket
|
订货须知Ordering Information：
需要30W吊杆式安装，则产品型号为BZD285B-DC30g；需要其它安装附件，请按安装举例的附件表选配，并在订单中注明。
When installing 30Wpendant type ,product model is:BZD285B-DC30g;If other additional mounting accessories are needed, please choose the accessories according to installation accessory table and indicate in the order.
