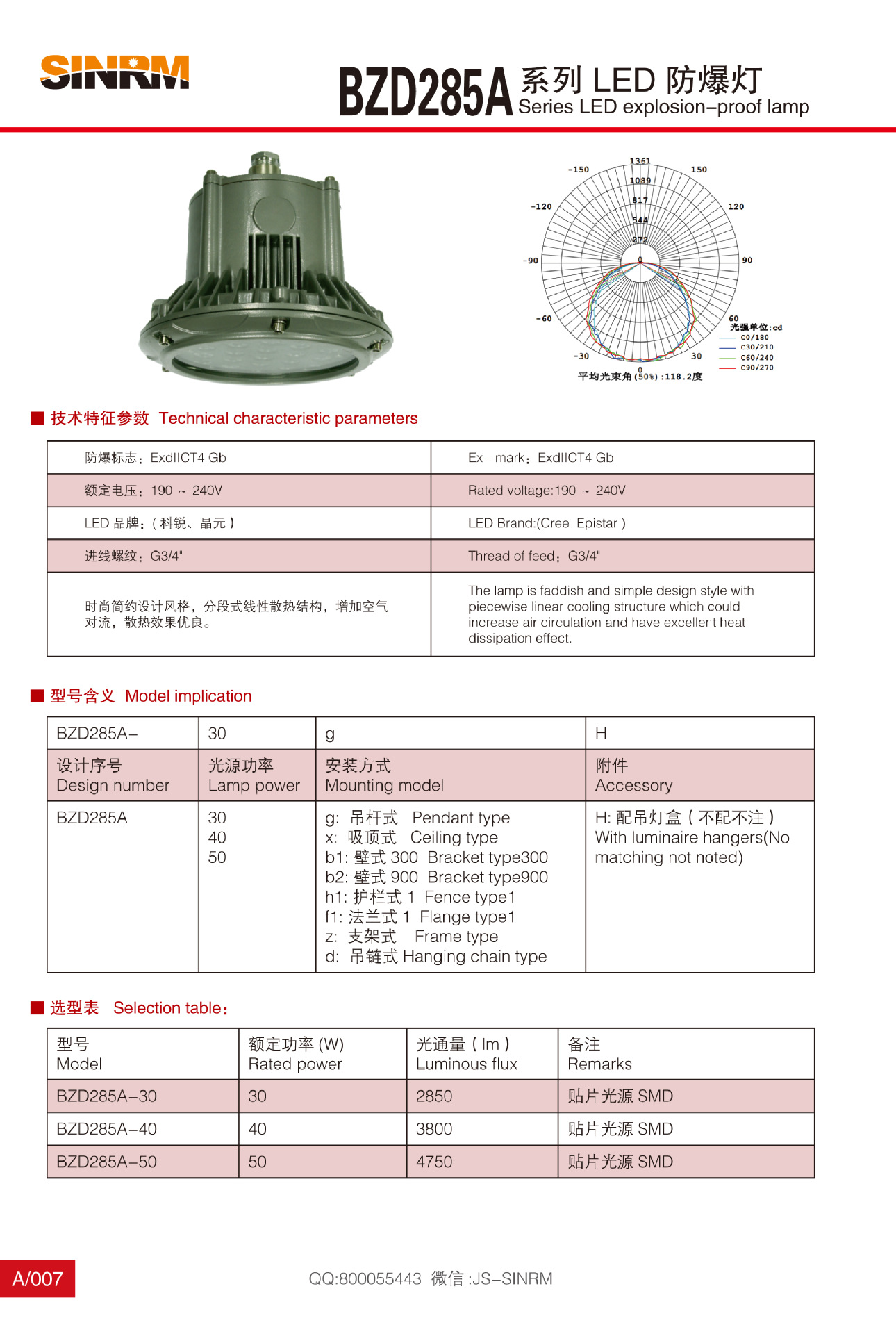

防爆标志：ExdIICT4 Gb

Ex- mark：ExdIICT4 Gb

额定电压：190～240V

Rated voltage:190～240V

LED品牌：(科锐、晶元）

LED Brand:(Cree  Epistar )

进线螺纹：G3/4"

Thread of feed：G3/4"

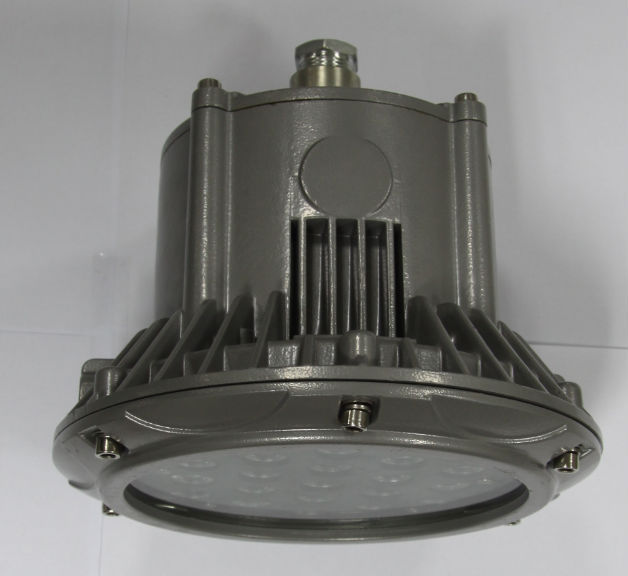

时尚简约设计风格，分段式线性散热结构，增加空气对流，散热效果优良。

The lamp is faddish and simple design style with piecewise linear cooling structure which could increase air circulation and have excellent heat dissipation effect.

No.1

2

3

4

BZD285A－

30

g

H

设计序号

Design number

光源功率

Lamp power

安装方式

Mounting model

附件

Accessory

BZD285A

30

40

50

g: 吊杆式   Pendant type

x: 吸顶式   Ceiling type

b1:壁式300  Bracket type300

b2:壁式900  Bracket type900

h1:护栏式1  Fence type1

f1:法兰式1  Flange type1

z: 支架式    fra-me type

d: 吊链式Hanging chain type

H:配吊灯盒（不配不注）

With luminaire hangers(No matching not noted)

型号

Model

额定功率(W)

Rated power

光通量（lm）

Luminous flux

备注

Remarks

BZD285A-30

30

2850

贴片光源SMD

BZD285A-40

40

3800

贴片光源SMD

BZD285A-50

50

4750

贴片光源SMD

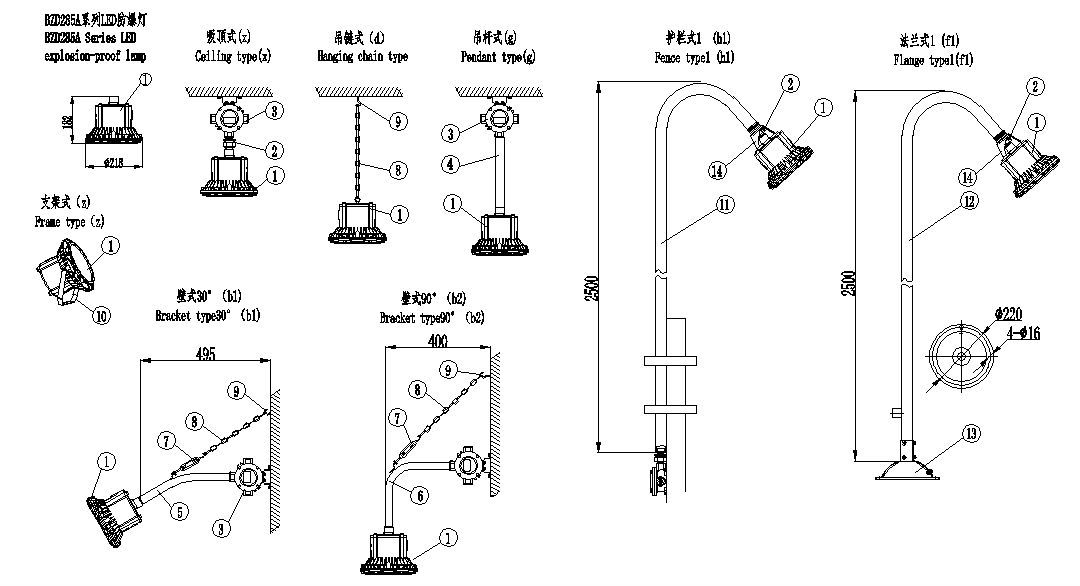

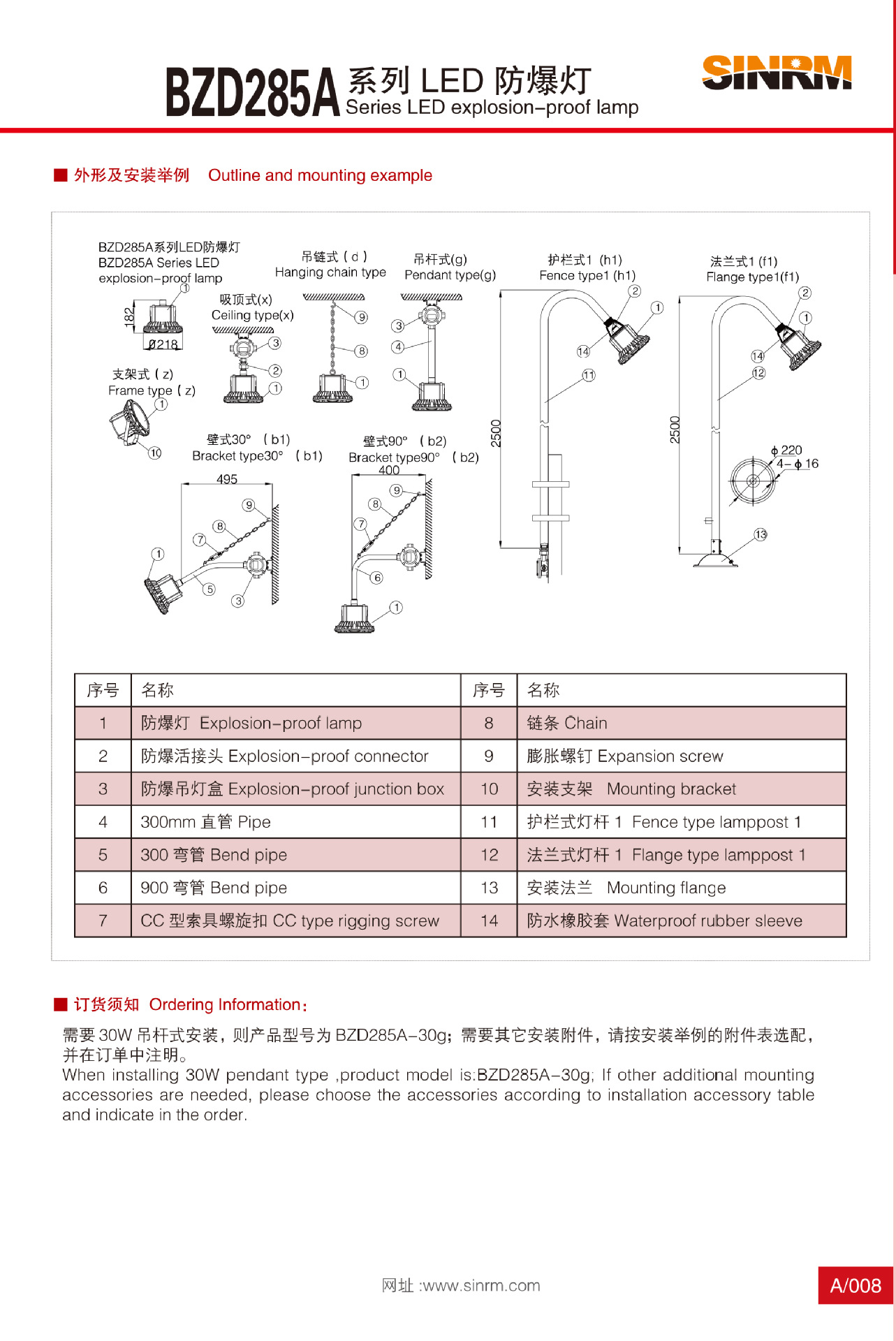

序号

名称

序号

名称

①

防爆灯  Explosion-proof lamp

⑧

链条Chain

②

防爆活接头Explosion-proof connector

⑨

膨胀螺钉Expansion screw

③

防爆吊灯盒Explosion-proof junction box

⑩

安装支架   Mounting bracket

④

300mm直管Pipe

??

护栏式灯杆1  Fence type lamppost 1

⑤

300弯管Bend pipe

??

法兰式灯杆1  Flange type lamppost 1

⑥

900弯管Bend pipe

??

安装法兰   Mounting flange

⑦

CC型索具螺旋扣CC type rigging screw

??

防水橡胶套Waterproof rubber sleeve
