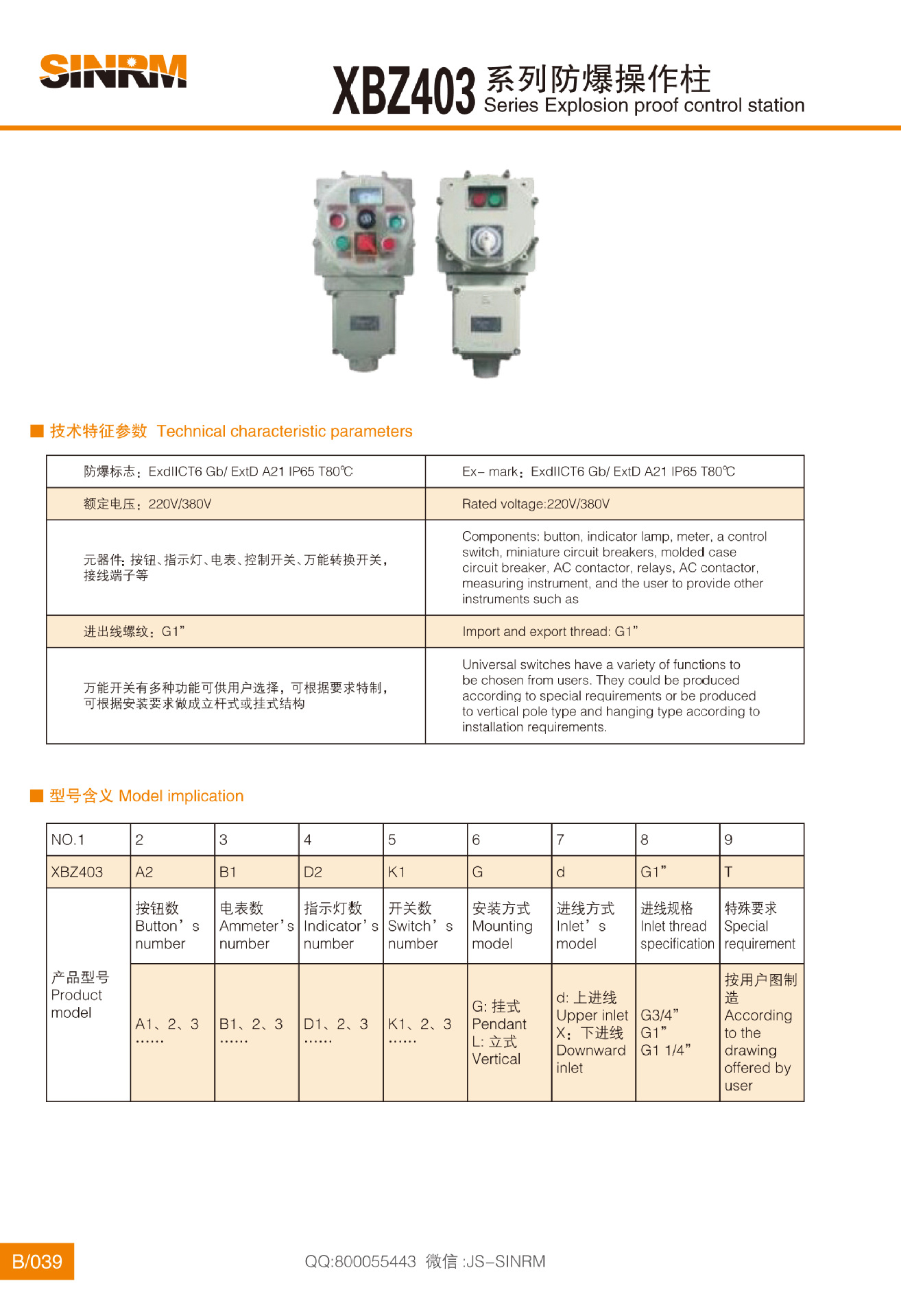

防爆标志：ExdIICT6 Gb/ ExtD A21 IP65 T80℃

Ex- mark：ExdIICT6 Gb/ ExtD A21 IP65 T80℃

额定电压：220V/380V

Rated voltage:220V/380V

元器件：按钮、指示灯、电表、控制开关、***转换开关，接线端子等

Components: button, indicator lamp, meter, a control switch, miniature circuit breakers, molded case circuit breaker, AC contactor, relays, AC contactor, measuring instrument, and the user to provide other instruments such as

进出线螺纹：G1”

imp0rt and export thread: G1”

***开关有多种功能可供用户选择，可根据要求特制，可根据安装要求做成立杆式或挂式结构

Universal switches have a variety of functions to be chosen from users. They could be produced according to special requirements or be produced to vertical pole type and hanging type according to installation requirements.

NO.1

2

3

4

5

6

7

8

9

XBZ403

A2

B1

D2

K1

G

d

G1”

T

产品型号

Product model

按钮数Button’s number

电表数Ammeter’s number

指示灯数

Indicator’s number

开关数

Switch’s number

安装方式

Mounting model

进线方式

Inlet’s model

进线规格

Inlet thread specification

特殊要求

Special requirement

A1、2、3

……

B1、2、3

……

D1、2、3

……

K1、2、3

……

G:挂式

Pendant

L:立式

Vertical

d:上进线

Upper inlet

X：下进线

Downward inlet

G3/4”

G1”

G1 1/4”

按用户图制造

According to the drawing offered by user
