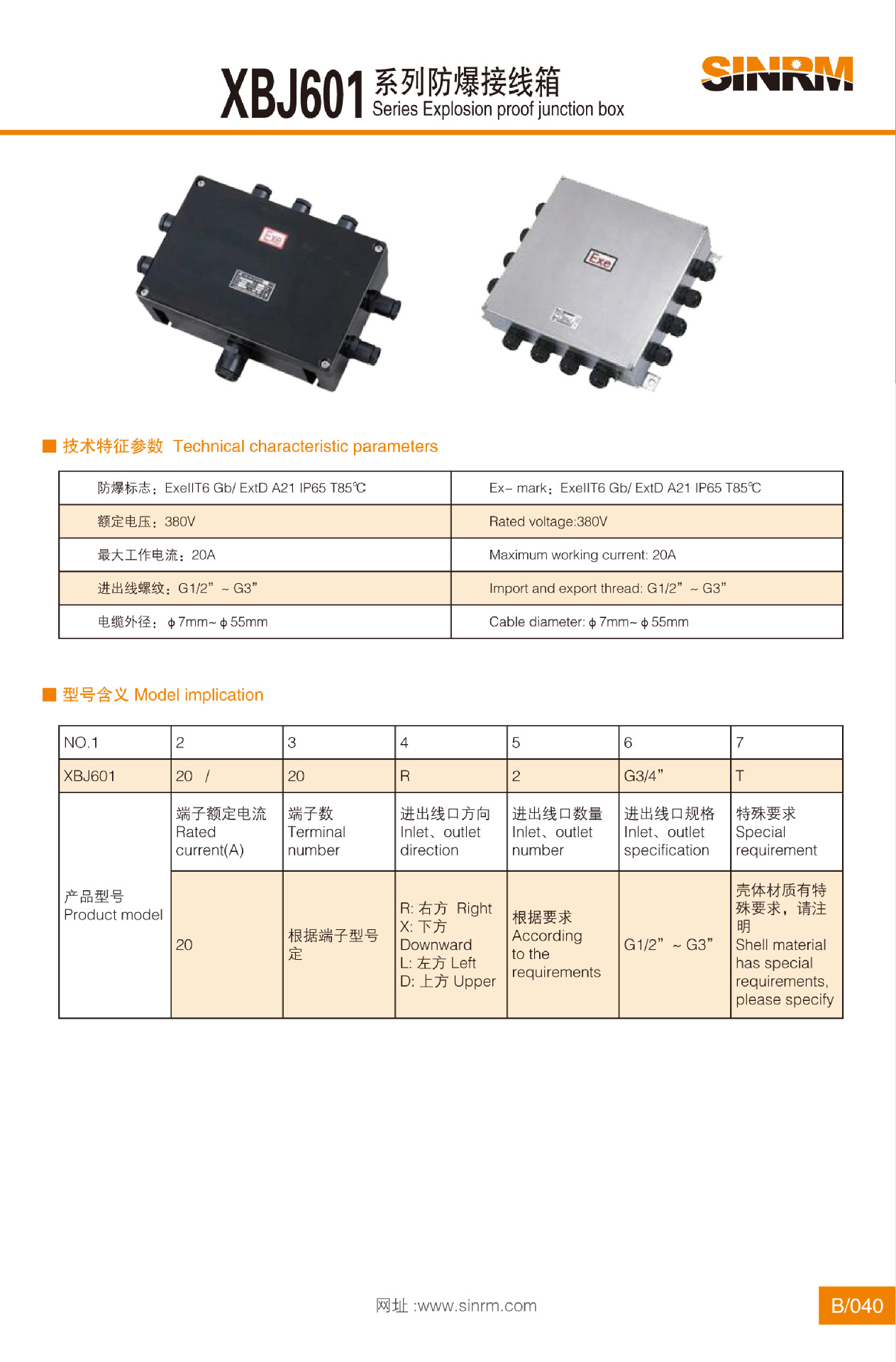

江苏新黎明 XBJ601系列防爆接线箱
XBJ601 Series Explosion proof junction box


技术特征参数Technical characteristic parameters:
|
防爆标志:ExeIIT6 Gb/ ExtD A21 IP65 T85℃
|
Ex- mark:ExeIIT6 Gb/ ExtD A21 IP65 T85℃
|
|
额定电压:380V
|
Rated voltage:380V
|
|
大工作电流:20A
|
Maximum working current: 20A
|
| 进出线螺纹:G1/2”~G3” |
imp0rt and export thread:G1/2”~G3”
|
|
电缆外径:φ7mm~φ55mm
|
Cable diameter:φ7mm~φ55mm
|
型号含义Model implication
|
NO.1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
XBJ601
|
20 /
|
20
|
R
|
2
|
G3/4”
|
T
|
|
产品型号
Product model
|
端子额定电流
Rated current(A)
|
端子数
Terminal number
|
进出线口方向
Inlet、outlet direction
|
进出线口数量
Inlet、outlet number
|
进出线口规格
Inlet、outlet specification
|
特殊要求
Special requirement
|
|
20
|
根据端子型号定
|
R:右方 Right
X:下方Downward
L:左方Left
D:上方Upper
|
根据要求
According to the requirements
|
G1/2”~G3”
|
壳体材质有特殊要求,请注明
Shell material has special requirements, please specify
|
